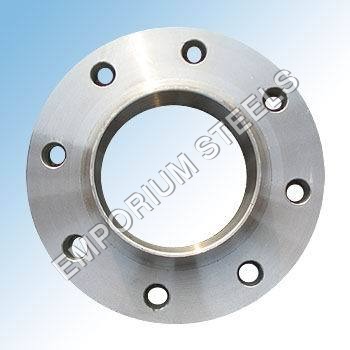

Carbon Steel Flange
Incepted in the year 1993, we are regarded as a leading trader and supplier of Carbon Steel Flange. These flanges are designed and manufactured by our professionals as per the set industry norms using supreme grade carbon steel. Our Carbon Steel Flange is largely used in petrochemical & automotive industries. In addition, these flanges are also used in water & pipe lines. We adhere to the parameters of the national and international quality standards to provide the clients with utmost satisfaction in terms of quality.
Key Features:
- High impact strength
- Negligible maintenance
- Flawless finish
Flange Specifications:
Pipe Size | Pipe Thickness | 45 Degree Bevel | Hole | Inside | Bolt | Outside | No. of |
2 | 0.5 | 0.25 | 0.75 | 2.46 | 4.75 | 6 | 4 |
2.5 | 0.5 | 0.25 | 0.75 | 3 | 5.5 | 7 | 4 |
3 | 0.5 | 0.25 | 0.75 | 3.6 | 6 | 7.5 | 4 |
4 | 0.5 | 0.25 | 0.75 | 4.6 | 7.5 | 9 | 8 |
5 | 0.5 | 0.25 | 0.875 | 5.69 | 8.5 | 10 | 8 |
22 | 1 | 0.375 | 1.375 | 22.25 | 27.25 | 29.5 | 20 |
24 | 1 | 0.375 | 1.375 | 24.25 | 29.5 | 32 | 20 |
26 | 1 | 0.375 | 1.375 | 26.25 | 31.75 | 34.25 | 24 |
30 | 1 | 0.375 | 1.375 | 30.38 | 36 | 38.75 | 28 |
32 | 1.125 | 0.375 | 1.625 | 32.38 | 38.5 | 41.75 | 28 |
36 | 1.125 | 0.375 | 1.625 | 36.38 | 42.75 | 46 | 32 |
6 | 0.625 | 0.25 | 0.875 | 6.75 | 9.5 | 11 | 8 |
8 | 0.625 | 0.312 | 0.875 | 8.75 | 11.75 | 13.5 | 8 |
10 | 0.625 | 0.312 | 1 | 10.95 | 14.25 | 16 | 12 |
12 | 0.75 | 0.312 | 1 | 12.95 | 17 | 19 | 12 |
14 | 0.75 | 0.312 | 1.125 | 14.2 | 18.75 | 21 | 12 |
16 | 0.75 | 0.375 | 1.125 | 16.2 | 21.25 | 23.5 | 16 |
18 | 0.75 | 0.375 | 1.25 | 18.2 | 22.75 | 25 | 16 |
20 | 0.75 | 0.375 | 1.25 | 20.25 | 25 | 27.5 | 20 |
