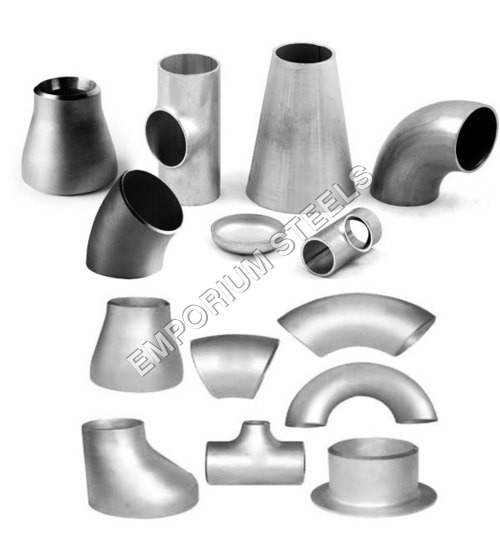

Stainless Steel Butt Weld Fittings
Established in the year 1993, we have been growing steadily in the market by offering our clients a foremost range of Stainless Steel Butt Weld Fittings. Procured from the reliable vendors of the market, these fittings are made using premium stainless steel and modern technology. These Stainless Steel Butt Weld Fittings are largely used in pipe lines for smooth flow of liquids and to run a processing machine continuously. We hold the experts to customize these fittings as per the exact needs of the clients.
Key Features:
- High temperature resistant
- Durable
- Easy to install
Specifications:
Specialist in : Stainless Steel 303,304,304L,310,310S,316,316L,316TI,321,410,202 etc.
Stainless Steel Butt weld fittings
Stainless steel:- ASTM A 403 F304 /304 L /304 H / 316 / 316 L / 317 / 317 L / 310 / 321 etc.
Carbon Steel:- ASTM A234 WPB / A420 WPL3 / A420 WPL6 MSS - SP- 75 WPHY 42 / 46 / 52 /56 / 60 / 70 .
Type - Elbow, Tee, Reducer, Bends, Stub- Ends, Cap, Collar etc.
Size:- 1/4" NB To 32" NB (Seamless & Welded)
Wall Thickness :- Schedule 5 to Schedule XXS
Seamless Butt - Welding Fittings - ANSI B 16.9
| Nominal Pipe Size | 90o L.R. Elbow | 45o Long Radius Elbow | 180U L.R. Return | Cap | Cap | ||
| Center to Face | Center to Face | Center Line Radius | Center to Center | Back to Face | Length | Length | |
| | A | B | | P | K | E | E, |
| 15 | 38 | 16 | 38 | 76 | 48 | 25 | 25 |
| 20 | 29 | 11 | 29 | 57 | 43 | 25 | 25 |
| 25 | 38 | 22 | 38 | 76 | 56 | 38 | 38 |
| 32 | 48 | 25 | 48 | 95 | 70 | 38 | 38 |
| 40 | 57 | 29 | 57 | 114 | 83 | 38 | 38 |
| 50 | 76 | 35 | 76 | 152 | 106 | 38 | 44 |
| 65 | 95 | 44 | 95 | 191 | 132 | 38 | 51 |
| 80 | 114 | 51 | 114 | 229 | 159 | 51 | 64 |
| 90 | 133 | 57 | 133 | 267 | 184 | 64 | 76 |
| 100 | 152 | 64 | 152 | 305 | 210 | 64 | 76 |
| 125 | 190 | 79 | 190 | 381 | 262 | 76 | 89 |
| 150 | 229 | 95 | 229 | 457 | 313 | 89 | 102 |
| 200 | 305 | 127 | 305 | 610 | 414 | 102 | 127 |
| 250 | 381 | 159 | 381 | 762 | 518 | 127 | 152 |
| 300 | 457 | 190 | 457 | 914 | 619 | 152 | 178 |
| 350 | 533 | 222 | 533 | 1067 | 711 | 165 | 191 |
| 400 | 610 | 254 | 610 | 1219 | 813 | 178 | 203 |
| 450 | 686 | 286 | 686 | 1372 | 914 | 203 | 229 |
| 500 | 762 | 318 | 762 | 1524 | 1016 | 229 | 254 |
| 550 | 838 | 343 | 838 | 1676 | 1118 | 254 | 254 |
| 600 | 914 | 381 | 914 | 1829 | 1219 | 267 | 305 |
